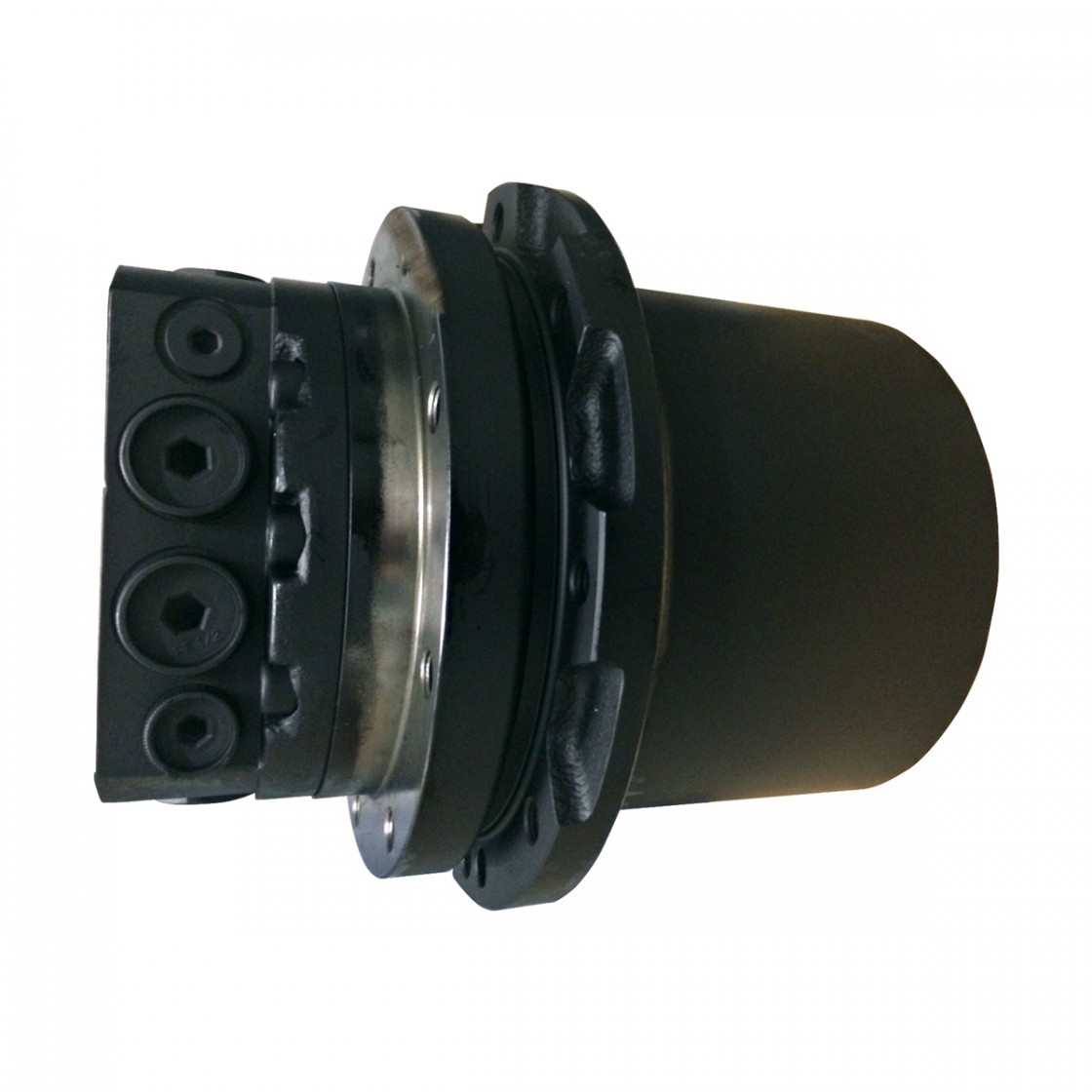

JCB JS70 Aftermarket Hydraulic Final Drive Motor
| Brand Name |
JCB |
| Model Number |
JS70 |
| Min.Order Quantity |
1 pcs |
| Price |
Negotiable |
Product Features
JCB JS70 bearing Size Chart (mm/inches) |
|---|
| Bearing number | 23222-E1-K-TVPB |
| Size (mm) | 110x200x69.8 |
| Bore Diameter (mm) | 110 |
| Outer Diameter (mm) | 200 |
| Width (mm) | 69,8 |
| d | 110 mm |
| D | 200 mm |
| B | 69,8 mm |
| D1 | 172,7 mm |
| Da max | 188 mm |
| d2 | 129,1 mm |
| da min | 122 mm |
| ds | 4,8 mm |
| ns | 9,5 mm |
| ra max | 2,1 mm |
| rmin | 2,1 mm |
| m | 8,8 kg / Weight |
| Cr | 710000 N / Dynamic load rating (radial) |
| e | 0,33 |
| Y1 | 2,06 |
| Y2 | 3,06 |
| C0r | 870000 N / Static load rating (radial) |
| Y0 | 2,01 |
| nG | 3250 1/min / Limiting speed |
| nB | 2150 1/min |
| Cur | 72000 N / Fatigue limit load, radial |
